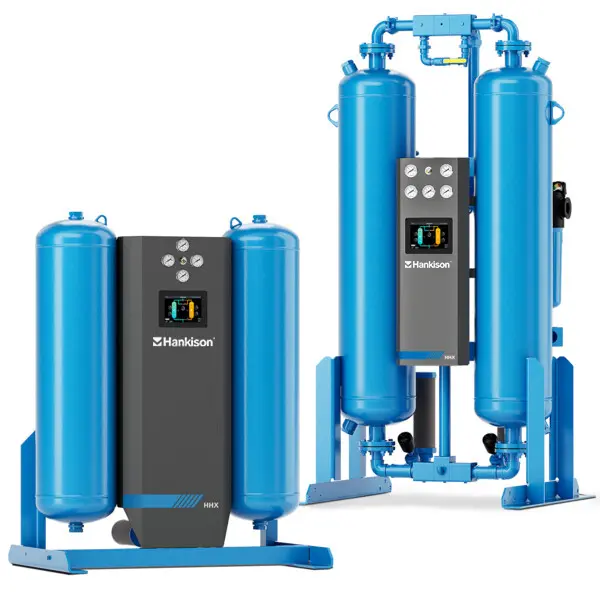

Utilizing twin towers filled with premium grade activated alumina, Hankison Heatless dryers are available with different application-specific control systems to meet the needs of the industry with economy and performance.
HHL Series heatless desiccant dryers provide consistent outlet pressure dew points to -70°C.
Standard Instrumentation
- Left and right tower pressure gauges
- Purge pressure gauge
- Moisture indicator - alerts operator of elevated dew point
- The throttling valve provides accurate purge pressure adjustment.
- With inlet and outlet filters as standard
- HHL 91 – HHL 901 standard up to 16 bar
- HHL 1051 – HHL 9001 standard 10 bar (g) 16 bar on request
Controller Options
Level 1
Pure and Simple
HHL Series presents traditional heatless drying technology. Using a simple timer-based controller, these are designed to deliver maximum value to applications that operate at or near full capacity. Automatic time-controlled bed regeneration cycles offer consistent performance and economy of purchase.
LX Controller
It is a Standard SPS Controller with a PDP Sensor and an Energy Saving feature
| Model | Flow Rate | Connection | el. Connection | Pre-filter | After-filter |
| m3/h | V/Ph/Hz | ||||
| HHL 91 | 90 | 3/4” | 95-240/1/50 | F06-B-HF | F06-B-PF |
| HHL 141 | 140 | 3/4” | F07-B-HF | F07-B-PF | |
| HHL 271 | 270 | 1“ | F08-B-HF | F08-B-PF | |
| HHL 351 | 350 | 1 1/2” | F10-B-HF | F10-B-PF | |
| HHL 521 | 520 | 1 1/2” | F11-B-HF | F11-B-PF | |
| HHL 681 | 680 | 1 1/2” | F12-B-HF | F12-B-PF | |
| HHL 901 | 900 | 2” | F14-B-HF | F14-B-PF | |
| HHL 1051 | 1050 | 2 1/2“ | 95-240/1/50 | F14-B-HF | F14-B-PF |
| HHL 1351 | 1350 | 2 1/2“ | F15-B-HF | F15-B-PF | |
| HHL 1651 | 1650 | 3” | F16-B-HF | F16-B-PF | |
| HHL 1951 | 1950 | 3” | F17-B-HF | F17-B-PF | |
| HHL 2351 | 2350 | DIN 100 | HF5-60 | HF6-60 | |
| HHL 2701 | 2700 | DIN 100 | HF5-60 | HF6-60 | |
| HHL 3601 | 3600 | DIN 100 | HF5-64 | HF6-64 | |
| HHL 5201 | 5200 | DN 150 | HF5-68 | HF6-68 | |
| HHL 7101 | 7100 | DN 150 | HF5-72 | HF6-72 | |
| HHL 9001 | 9000 | DN 150 | HF5-76 | HF6-76 | |
Contact us for more information about correction factors and electrical data.
1 Inlet flows are established in accordance with ISO 7183(based on 1 bar (abs) 0% of at 7 bar (g) working pressure and inlet temperature 35°C (PDP -40°) or inlet temperature 30°C PDP -70°C
2 Average Purge Flow is the total amount of air used to purge and repressurize off-stream towers averaged over the cycle time. Maximum Purge Flow is the flow rate through the off-stream tower during that portion of the cycle the purge/ repressurization valve is open.
| Model | Connection | Dimensions | Weight | ||
| A | B | C | |||
| mm | kg | ||||
| HHL 91 | 3/4” | 750 | 750 | 1950 | 181 |
| HHL 141 | 3/4” | 750 | 750 | 1950 | 220 |
| HHL 271 | 1“ | 1150 | 750 | 1980 | 398 |
| HHL 351 | 1 1/2” | 1150 | 750 | 1980 | 421 |
| HHL 521 | 1 1/2” | 1150 | 750 | 1990 | 531 |
| HHL 681 | 1 1/2” | 1150 | 750 | 1990 | 650 |
| HHL 901 | 2” | 1150 | 750 | 2000 | 815 |
| HHL 1051 | 2 1/2“ | 1500 | 1320 | 1910 | 965 |
| HHL 1351 | 2 1/2“ | 1500 | 1420 | 1921 | 1275 |
| HHL 1651 | 3” | 1500 | 1470 | 2090 | 1525 |
| HHL 1951 | 3” | 1500 | 1520 | 2116 | 1710 |
| HHL 2351 | DIN 100 | 1500 | 1720 | 2136 | 2080 |
| HHL 2701 | DIN 100 | 1700 | 1770 | 2225 | 2305 |
| HHL 3601 | DIN 100 | 1950 | 1920 | 2258 | 2755 |
| HHL 5201 | DN 150 | 2400 | 2140 | 2456 | 4105 |
| HHL 7101 | DN 150 | 2690 | 2335 | 2701 | 6200 |
| HHL 9001 | DN 150 | 2820 | 2504 | 2536 | 6800 |
